6V 2400rpm 0.9W 10:1 Gear Motor D12x25L mm
$5.90

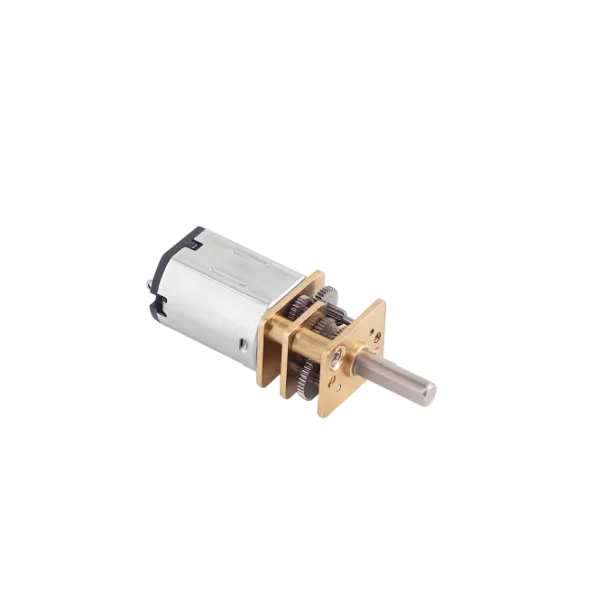

12V 100rpm 2.4W 298:1 Gear Motor D12x25L mm
12V 100rpm 2.4W 298:1 Gear Motor D12x25L mm
Price :
Original price was: $8.90.$6.70Current price is: $6.70.
- Information related to taxation
- Some question to contact us
- Shipping Information
12mm gearmotors are widely used on robots, electric household appliance.
Description
The 12mm gearmotors are widely used on Intelligent robots,intelligent manipulators, intelligent furnitures, Intelligent focusing systems etc. Those are incredibly tough and feature full metal gears. Have gear ratio 10:1 to 1000:1,2200rpm~22rpm, stall torque 0.2-3kg.cm.
Brush: metal brush Type: MG12H120100
SKU: MG12H120100
Features:
Voltage: 12V
Gear Ratio:298:1
Stall: 2.32Kg.cm, 0.85A
No load: 100rpm, 85mA
Rated: 78rpm, 0.8Kg.cm, 0.2A
Size: 12*25(gearhead length 9mm) Extending shaft: length 10mm, dimmeter 4mm, D CUT 3mm.
(data sheet download @12V 3000rpm 10:1)
Brush: metal brush Type: MG12H120100
SKU: MG12H120100
Features:
Voltage: 12V
Gear Ratio:298:1
Stall: 2.32Kg.cm, 0.85A
No load: 100rpm, 85mA
Rated: 78rpm, 0.8Kg.cm, 0.2A
Size: 12*25(gearhead length 9mm) Extending shaft: length 10mm, dimmeter 4mm, D CUT 3mm.
(data sheet download @12V 3000rpm 10:1)
Downloads
