12V 255pm 63:1 7PPR Encoder
12V 255pm 63:1 7PPR Encoder
Price :
$15.50
- Information related to taxation
- Some question to contact us
- Shipping Information

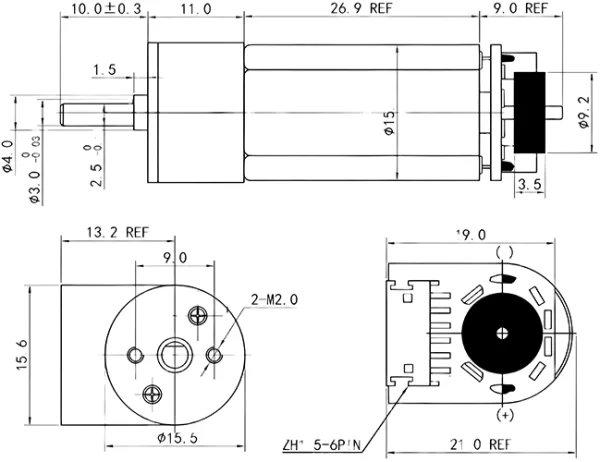

16mm encoder gear motor.
Description
The 16mm encoder gearmotors are widely used on Intelligent robots,intelligent manipulators, intelligent furnitures, Intelligent focusing systems etc. Those are incredibly tough and feature full metal gears. Have gear ratio 10:1 to 360:1, 1600rpm~44rpm, stall torque 0.33Kg.cm~3Kg.cm (restrication stall torque 3.0Kg.cm)
Type: MG160255-6
Features:
Voltage: 6-12 Volts
Gear Ratio: 63:1
Stall Torque:2.8kg.cm (12V)
No load Speed: 255rpm(12V)
No Load Current: 70mA (12V)
Rated: 0.9Kg.cm,200rpm, 300mA
Stall Current: 1.3A (12V)
AB phase 7ppr Encoder.
(data sheet at: 12V 1600rpm 10:1 )
