37mm Encoder gearmotors are widely used on robots, electric household appliance.
Description
The 37mm Encoder gearmotors are widely used on Intelligent robots,intelligent manipulators, intelligent furnitures, Intelligent focusing systems etc. Those are incredibly tough and feature full metal gears. Have gear ratio 6.3:1 to 810:1,1600rpm~12rpm, stall torque 1.8~140Kg.cm
Type: MG37DE-120059-169
Features:
Voltage: 6-18 V
Gear Ratio:169:1
Stall Torque: 37.6Kg.cm (6V)
Stall Current: 4.3A (12V)
No load Speed: 59rpm (12V)
No Load Current: 180mA (12V)
Rated torque: 9.4Kg.cm (12V)
Rated Speed: 46rpm (12V)
Rated Current: 1.2A (12V)

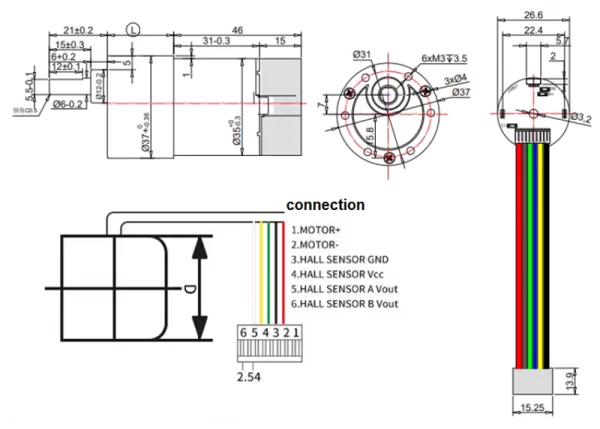

Size: 37*80(gearhead length 22mm)
AB phase Hall Sensor Encoder 64CPR
(data sheet download @12V 59rpm 169:1 Encoder motor)
Type: MG37DE-120059-169
Features:
Voltage: 6-18 V
Gear Ratio:169:1
Stall Torque: 37.6Kg.cm (6V)
Stall Current: 4.3A (12V)
No load Speed: 59rpm (12V)
No Load Current: 180mA (12V)
Rated torque: 9.4Kg.cm (12V)
Rated Speed: 46rpm (12V)
Rated Current: 1.2A (12V)
Size: 37*80(gearhead length 22mm)
AB phase Hall Sensor Encoder 64CPR
(data sheet download @12V 59rpm 169:1 Encoder motor)
