16PPR Hall Encoder for 3.175 mm Shaft Motor (RS545/550/555 DC motor)
Hall Encoder ENC31-555P16 is a high-performance, low-cost, two-channel incremental magnetic encoder suitable for harsh environments. Each magnetic encoder consists of a magnetic grating and a magnet sensitive detection circuit, outputting two channels of square waves with a 90° phase difference. Designed based on motor diameter and shaft dimensions, the sensor-equipped PCB is fixed by soldering to the motor’s rear electrodes, while the magnetic grating is sleeved onto the tail shaft.
It features fast response, strong shock resistance, long transmission distance, as well as long service life and high reliability even under demanding conditions.
Type: ENC31-555P16
SKU: ENC31-555P16
Phase: AB phase
Voltage: 3.3-5V
Frequency: 20kHz
Resolution: 16 PPR
Output Signal: AB-phase square wave with 1/4 cycle phase difference
Operating Temperature: -40 °C to +125 °C

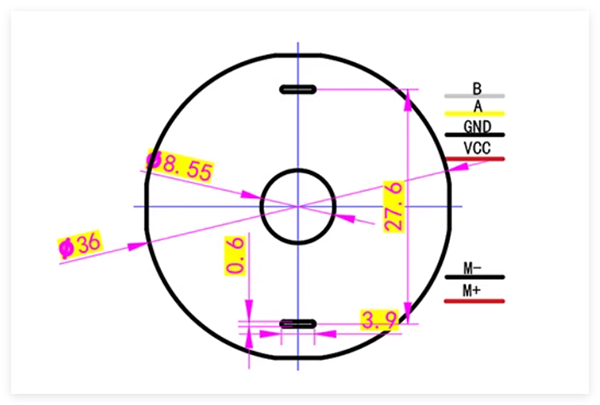

Interface Type: encoder 4P-PH2.0, motor 2P-VH3.96
Wire Length: encoder calbe 26AWG 200±10mm, motor cable 18AWG 200±10mm
Compatible Motor: 3.175mm shaft motor(motor OD 36mm: RS545/550/555)
Max. Measurable Speed: 75,000 RPM
Rear shaft length ≥ 6.2mm
PCB Thickness: 1.2mm
Magnet Ring Dimensions: Outer Diameter 18mm,
Inner Diameter: 3.175mm (-0.02 tolerance)
Thickness 4mm
Packing list:
1x Encoder
1x Single-End 4P PH2.0 cable
1x Single-End 2P VH3.96 cable
