12V 500pm 16:1 Planetary Gearmotor 28mm D28x66.5L mm
$15.90
24V 320pm 25:1 Planetary Gearmotor 28mm D28x66.5L mm
24V 320pm 25:1 Planetary Gearmotor 28mm D28x66.5L mm
Price :
$18.90
- Information related to taxation
- Some question to contact us
- Shipping Information

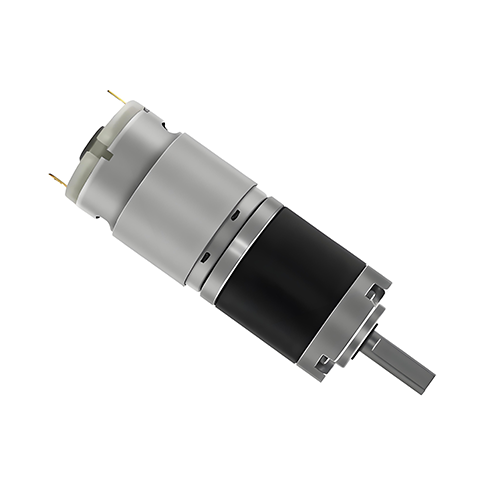

28mm planetary gearmotors are widely used on robots, electric household appliance.
Description
The 28mm Planetary gearmotors are widely used on Intelligent robots,intelligent manipulators, intelligent furnitures, Intelligent focusing systems etc. Those are incredibly tough and feature full metal gears. Have gear ratio 16:1 to 88:1,500rpm~90rpm, stall torque2.5~14Kg.cm
Type: MP28240320-25 SKU：MP280320-2
Features:
Voltage: 24 V
Gear Ratio:25:1
Stall Torque: 4Kg.cm (24V)
Stall Current: 1.4A (24V)
No load Speed: 320rpm (24V)
No Load Current: 100mA (24V)
Rated torque: 0.6Kg.cm (24V)
Rated Speed: 256rpm (24V)
Rated Current: 0.5A (24V)

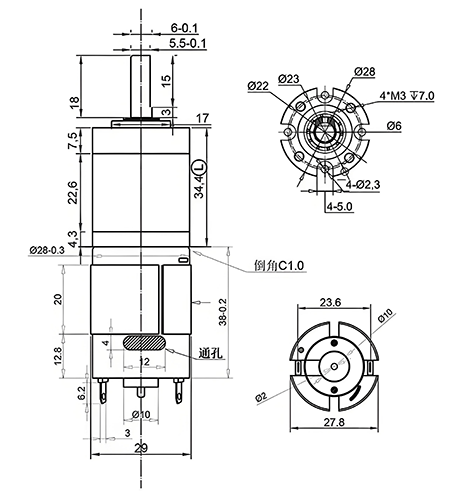

Size: 28*66.5(gearhead length 28mm)
Type: MP28240320-25 SKU：MP280320-2
Features:
Voltage: 24 V
Gear Ratio:25:1
Stall Torque: 4Kg.cm (24V)
Stall Current: 1.4A (24V)
No load Speed: 320rpm (24V)
No Load Current: 100mA (24V)
Rated torque: 0.6Kg.cm (24V)
Rated Speed: 256rpm (24V)
Rated Current: 0.5A (24V)
Size: 28*66.5(gearhead length 28mm)
Downloads
