28mm Clamping Flange Coupling for 6mm Shaft
28mm Clamping Flange Coupling for 6mm Shaft
Price :
$6.75
- Information related to taxation
- Some question to contact us
- Shipping Information
Flange
Description

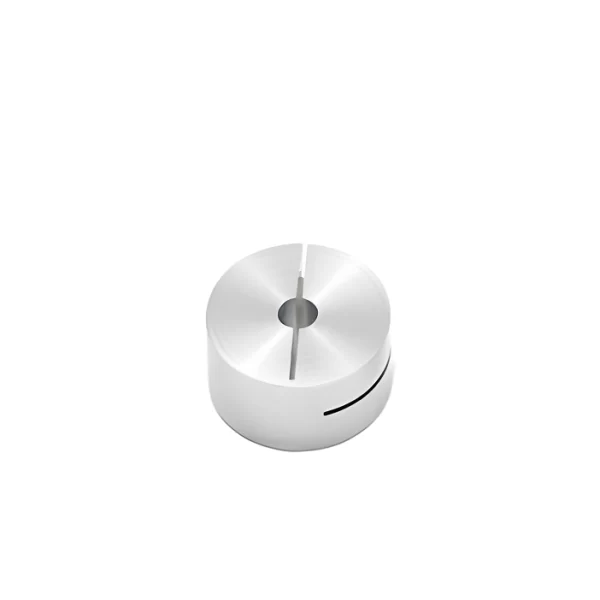

28mm Clamping Flange Coupling for 6mm Shaft
<br /
Type: FLA28-CCD6
SKU: FLA28-CCD6
Material: High-Strength Aluminum Alloys
Max clamping torque: 5.1N.m
Weight: 24.5g

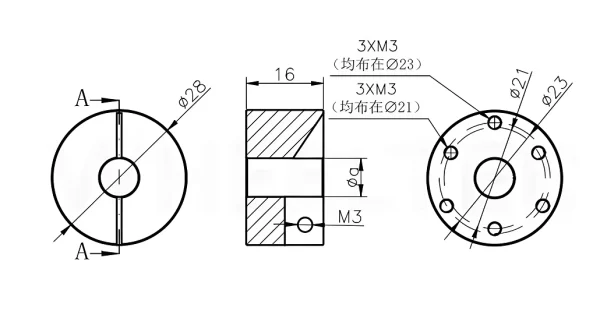

Size: D28mm x H16mm
Amounting size: diameter 21mm/23mm
Screw: M3
Apply for: Omni wheel 60mm 75mm,and other mounting size diameter 21/23mm wheel
Packing list:
1x flange+ 1x M3*10(Hexagon socket screw)
Type: FLA28-CCD6
SKU: FLA28-CCD6
Material: High-Strength Aluminum Alloys
Max clamping torque: 5.1N.m
Weight: 24.5g
Size: D28mm x H16mm
Amounting size: diameter 21mm/23mm
Screw: M3
Apply for: Omni wheel 60mm 75mm,and other mounting size diameter 21/23mm wheel
Packing list:
1x flange+ 1x M3*10(Hexagon socket screw)
