2WD 1 Layer Robit Kit D25*44L mm7.4V 500rpm 20:1 Encoder Gear Motor
2WD 1 Layer Robit Kit D25*44L mm7.4V 500rpm 20:1 Encoder Gear Motor
Price :
$29.00
- Information related to taxation
- Some question to contact us
- Shipping Information
Description

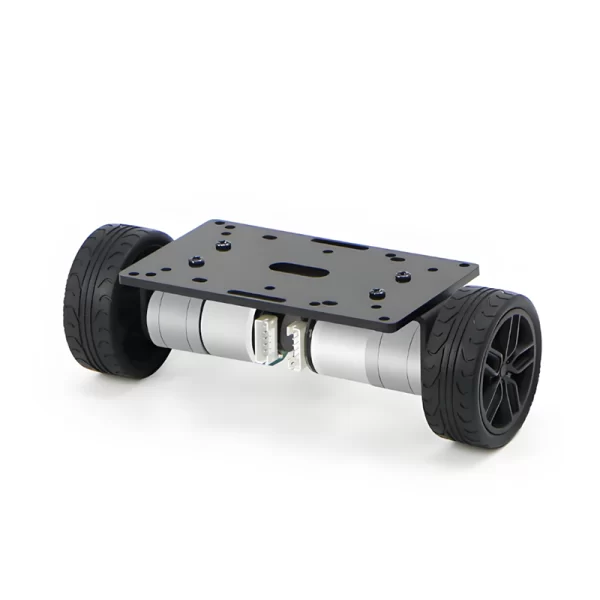

The R1 2WD Robot Kits are used integral alloy, 48mm Premium rubber tires, small size encoder gear motors , can ensure the chassis coaxiality and balance performance.
Type: 2WD-R125E1
Robot kit size: Finish 60*147.5*48H mm
Gear Motor size: 25Dx44.5L mm
Motor Data:
Voltage: 7.4 V
Gear Ratio:20.409:1
Stall Torque: 1.5Kg.cm
Stall Current: 2A
No load Speed: 500rpm
Rated torque: 0.4Kg.cm
Rated Speed: 400rpm
Rated Current: 0.4A
AB phase Hall Sensor Encoder:13ppr
