4WD Smart Car Chassis without Suspension
Description

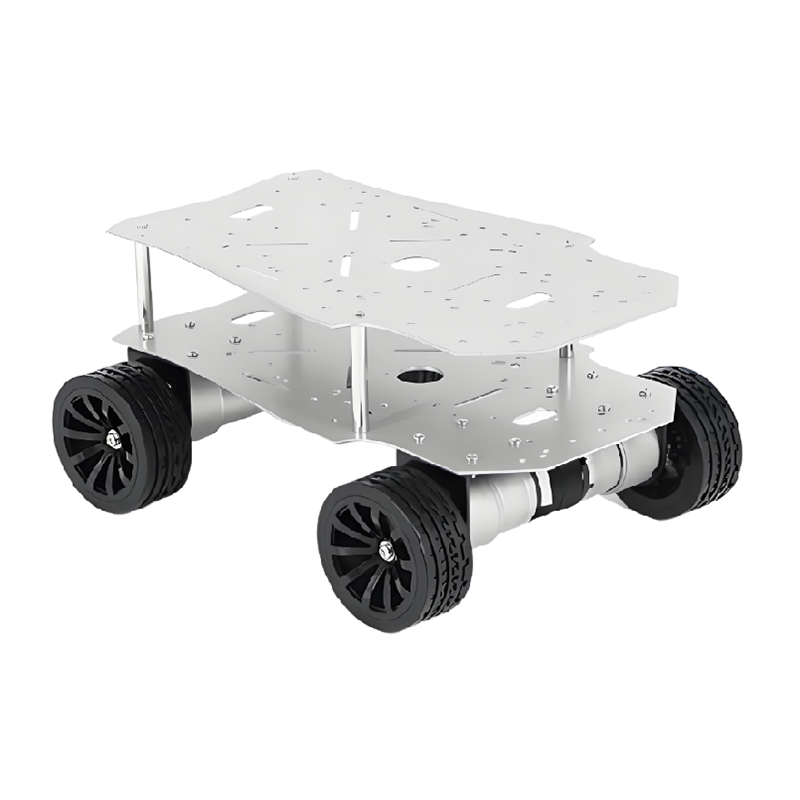

4WD Smart Car Chassis
Type: R3-4WD65
SKU: R3-4WD65
Robot kit size: Finish 244.6×184.7×120 mm Weight: 1.23Kg
Rated: 3KG
Speed:1.2m/s
Gear Motor size: 37Dx53.4L mm
Motor Data:
Voltage: 12 V
Gear Ratio:30:1
Stall Torque: 4.5Kg.cm
Stall Current: 3.2A
No load Speed:366rpm
Rated torque:1Kg.cm
Rated Speed: 293rpm
Rated Current: 0.36A
AB phase Hall Sensor Encoder:13ppr
Packing list: 2x metal Chassis (upper layer, bottom layer)
4x encoder gear motor 37Dx53.4L
4x 65mm solid rubber tire wheel with hubes and screws
4xlead wires and connetors
Type: R3-4WD65
SKU: R3-4WD65
Robot kit size: Finish 244.6×184.7×120 mm Weight: 1.23Kg
Rated: 3KG
Speed:1.2m/s
Gear Motor size: 37Dx53.4L mm
Motor Data:
Voltage: 12 V
Gear Ratio:30:1
Stall Torque: 4.5Kg.cm
Stall Current: 3.2A
No load Speed:366rpm
Rated torque:1Kg.cm
Rated Speed: 293rpm
Rated Current: 0.36A
AB phase Hall Sensor Encoder:13ppr
Packing list: 2x metal Chassis (upper layer, bottom layer)
4x encoder gear motor 37Dx53.4L
4x 65mm solid rubber tire wheel with hubes and screws
4xlead wires and connetors
