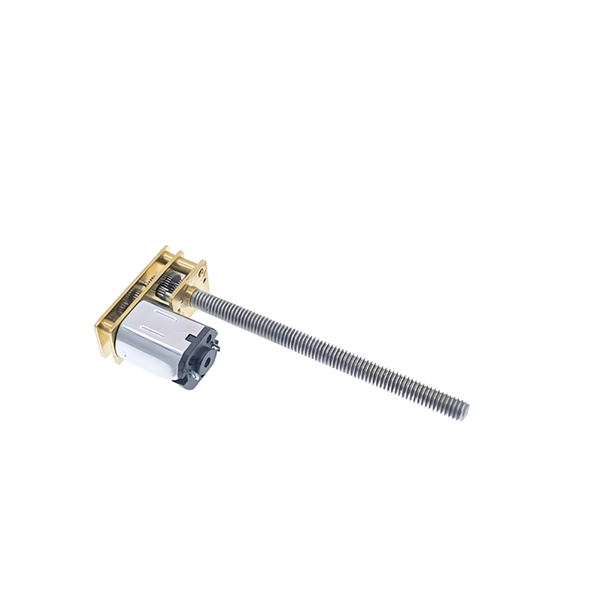

55mm Lead Screw 50rpm 0.35W 298:1 1024# Gear Motor
$9.50
55mm Lead Screw Encoder 150rpm Gear Motor
55mm Lead Screw Encoder 150rpm Gear Motor
Price :
$12.90
- Information related to taxation
- Some question to contact us
- Shipping Information
12mm gearmotors are widely used on robots, electronic instrumentss, small automatic device.
Description
The 12mm gearmotors are widely used on Intelligent robots,intelligent manipulators, intelligent furnitures, Intelligent focusing systems etc. Those are incredibly tough and feature full metal gears. Have gear ratio 10:1 to 298:1,2400rpm~80rpm, stall torque 0.3-5.5kg.cm.
Brush: metal brush
Type: MG12ELS55-060150-100
SKU: MG12ELS55-060150
Features:
Encoder: 7PPR
Lead screw: M4x55Lmm
Votage: 6V-12V
Gear Ratio: 100:1
Stall torque: 1.75/3.5KG.CM (6V/12V)
Stall Current: 0.6/0.7 (6V/12V)
Speed:150rpm/300rpm
Rated: 120rpm-0.35Kg.cm-0.16A/240rpm-0.7Kg.cm-0.16A(6V/12V)
Extending shaft: length 10mm, diameter 4mm, D CUT 3mm.
Brush: metal brush
Type: MG12ELS55-060150-100
SKU: MG12ELS55-060150
Features:
Encoder: 7PPR
Lead screw: M4x55Lmm
Votage: 6V-12V
Gear Ratio: 100:1
Stall torque: 1.75/3.5KG.CM (6V/12V)
Stall Current: 0.6/0.7 (6V/12V)
Speed:150rpm/300rpm
Rated: 120rpm-0.35Kg.cm-0.16A/240rpm-0.7Kg.cm-0.16A(6V/12V)
Extending shaft: length 10mm, diameter 4mm, D CUT 3mm.
Downloads
