6V 2000rpm 0.4W 5:1 Gear Motor 12x25L mm
$5.90
6V 1500rpm 0.6W 10:1 Gear Motor 12x25L mm
6V 1500rpm 0.6W 10:1 Gear Motor 12x25L mm
Price :
$5.90
- Information related to taxation
- Some question to contact us
- Shipping Information
12mm gearmotors are widely used on robots, electric household appliance, small device.
Description
The 12mm gearmotors are widely used on Intelligent robots,intelligent manipulators, intelligent furnitures, Intelligent focusing systems etc. Those are incredibly tough and feature full metal gears. Have gear ratio 10:1 to 298:1,2400rpm~80rpm, stall torque 0.2-3kg.cm.
Brush: metal brush
Type: MG12L061500-10
SKU: MG12L061500
Features:
Voltage: 6V
Gear Ratio:10:1
Stall: 0.073Kg.cm, 0.30A
No load: 1500rpm, 30mA
Rated: 1154rpm, 0.044Kg.cm, 0.15A

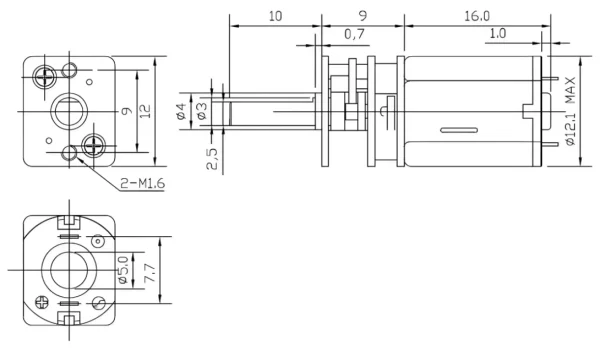

Size: 12*25(gearhead length 9mm) Extending shaft: length 10mm, dimmeter 4mm, D CUT 3mm.
Brush: metal brush
Type: MG12L061500-10
SKU: MG12L061500
Features:
Voltage: 6V
Gear Ratio:10:1
Stall: 0.073Kg.cm, 0.30A
No load: 1500rpm, 30mA
Rated: 1154rpm, 0.044Kg.cm, 0.15A
Size: 12*25(gearhead length 9mm) Extending shaft: length 10mm, dimmeter 4mm, D CUT 3mm.
Downloads
