Ackermann Smart Car R3X Chassis Kit with 13ppr Encoder Motor
Description

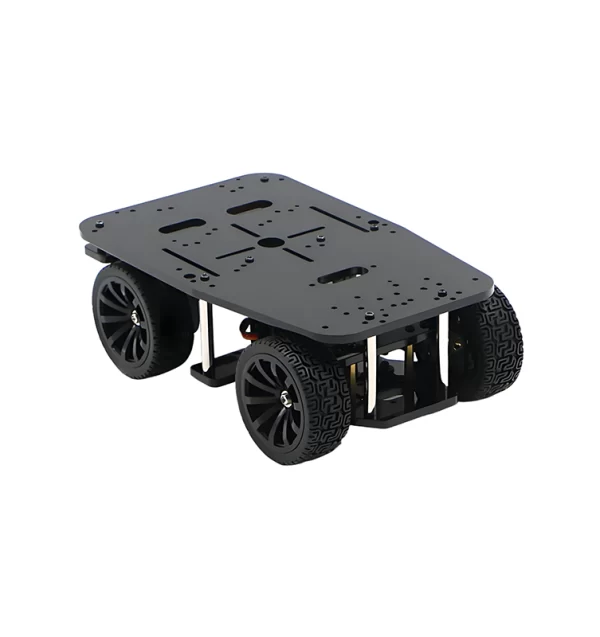

Ackermann Smart Car R3X Chassis Kit with 13ppr Encoder Motor
Type: R3X-ARK03
SKU: R3X-ARK03

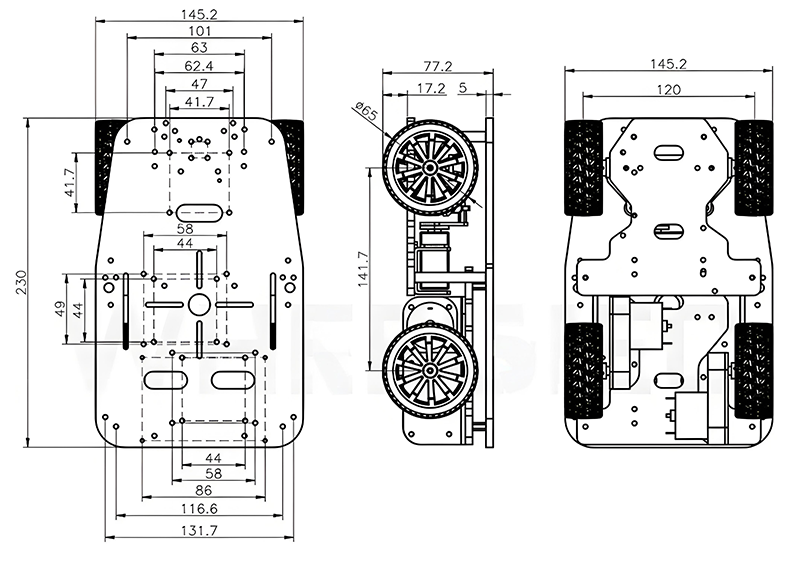

Robot kit size: Finish 230*145*77 mm Weight: 1.1Kg
Rated: 3KG
Speed:1.25m/s
Gear Motor size: 36x64x43 mm
Motor Data: 12V 370rpm 28:1
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x Chassis suit
2x gear motor
4x 65mm solid rubber tire wheel with hubes and screws
1x Servo motor SF20F kit, with bracket, bearing,and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,​Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
Type: R3X-ARK03
SKU: R3X-ARK03
Robot kit size: Finish 230*145*77 mm Weight: 1.1Kg
Rated: 3KG
Speed:1.25m/s
Gear Motor size: 36x64x43 mm
Motor Data: 12V 370rpm 28:1
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x Chassis suit
2x gear motor
4x 65mm solid rubber tire wheel with hubes and screws
1x Servo motor SF20F kit, with bracket, bearing,and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,​Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
