28mm Clamping Flange Coupling for 4mm Shaft
28mm Clamping Flange Coupling for 4mm Shaft
Price :
$6.43
- Information related to taxation
- Some question to contact us
- Shipping Information
Flange
Description
28mm Clamping Flange Coupling for 4mm Shaft
<br /
Type: FLA28-CCD4
SKU: FLA28-CCD4
Material: High-Strength Aluminum Alloys
Max clamping torque: 3.6N.m
Weight: 17.2g

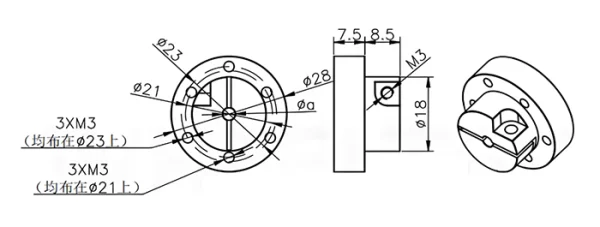

Size: D28mm x H16mm
Amounting size: diameter 21mm/23mm
Screw: M3
Apply for: Omni wheel 60mm 75mm
Packing list:
1x flange+ 1x M3*10(Hexagon socket screw)
Type: FLA28-CCD4
SKU: FLA28-CCD4
Material: High-Strength Aluminum Alloys
Max clamping torque: 3.6N.m
Weight: 17.2g
Size: D28mm x H16mm
Amounting size: diameter 21mm/23mm
Screw: M3
Apply for: Omni wheel 60mm 75mm
Packing list:
1x flange+ 1x M3*10(Hexagon socket screw)
