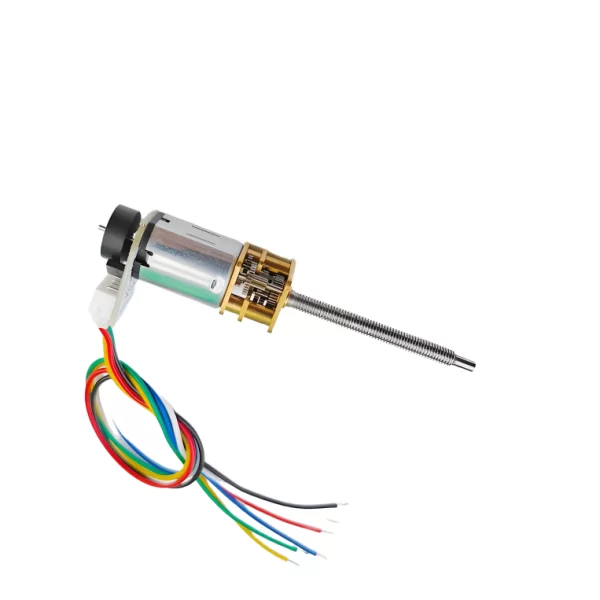

34mm Lead Screw 500rpm 0.45W 30:1 Gear Motor
$8.50
34mm Lead Screw Encoder 500rpm Gear Motor
34mm Lead Screw Encoder 500rpm Gear Motor
Price :
$8.50
- Information related to taxation
- Some question to contact us
- Shipping Information
12mm gearmotors are widely used on robots, electronic instrumentss, small automatic device.
Description
The 12mm gearmotors are widely used on Intelligent robots,intelligent manipulators, intelligent furnitures, Intelligent focusing systems etc. Those are incredibly tough and feature full metal gears. Have gear ratio 10:1 to 298:1,2400rpm~80rpm, stall torque 0.3-16kg.cm.
Brush: metal brush
Type: MG12ELS34-060500-30
SKU: MG12ELS34-060500
Features:
Encoder: 7PPR
Lead screw: M3x34Lmm
Votage: 6V-12V
Gear Ratio:30:1
Stall torque: 1.0/2.4KG.CM (6V/12V)
Stall Current: 0.6/0.7 (6V/12V)
Speed: 500rpm/1000rpm
Rated: 400rpm-0.15Kg.cm-0.16A/800rpm-0.3Kg.cm-0.16A(6V/12V)
Extending shaft: length 10mm, dimmeter 4mm, D CUT 3mm.
Brush: metal brush
Type: MG12ELS34-060500-30
SKU: MG12ELS34-060500
Features:
Encoder: 7PPR
Lead screw: M3x34Lmm
Votage: 6V-12V
Gear Ratio:30:1
Stall torque: 1.0/2.4KG.CM (6V/12V)
Stall Current: 0.6/0.7 (6V/12V)
Speed: 500rpm/1000rpm
Rated: 400rpm-0.15Kg.cm-0.16A/800rpm-0.3Kg.cm-0.16A(6V/12V)
Extending shaft: length 10mm, dimmeter 4mm, D CUT 3mm.
