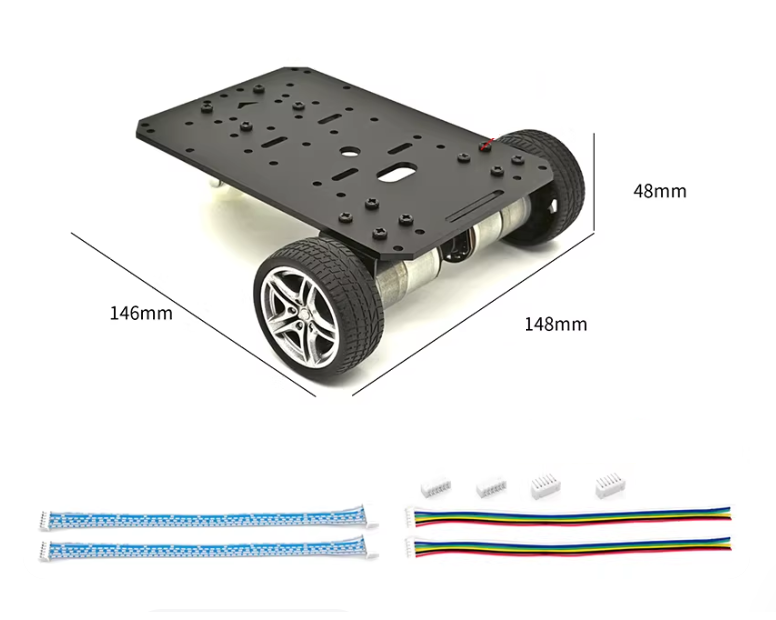

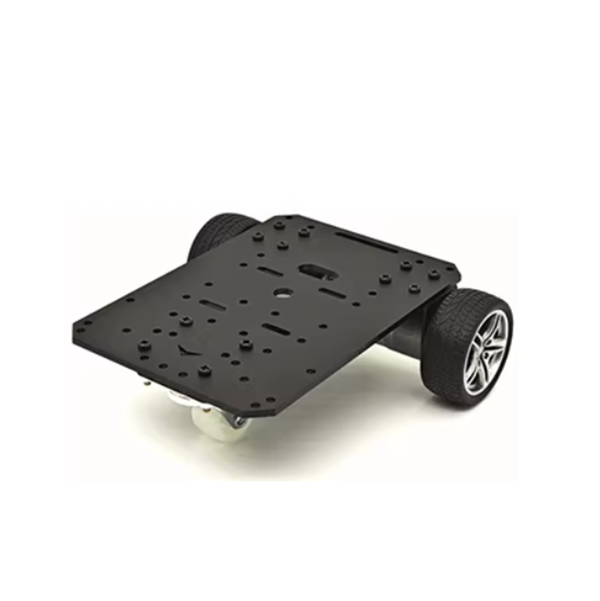

Mini 2WD Smart Car R1S with 13PPR Encoder Motors
$33.90
Mini Omni Directional Three Wheel Robot Chassis
Mini Omni Directional Three Wheel Robot Chassis
Price :
$23.85
- Information related to taxation
- Some question to contact us
- Shipping Information

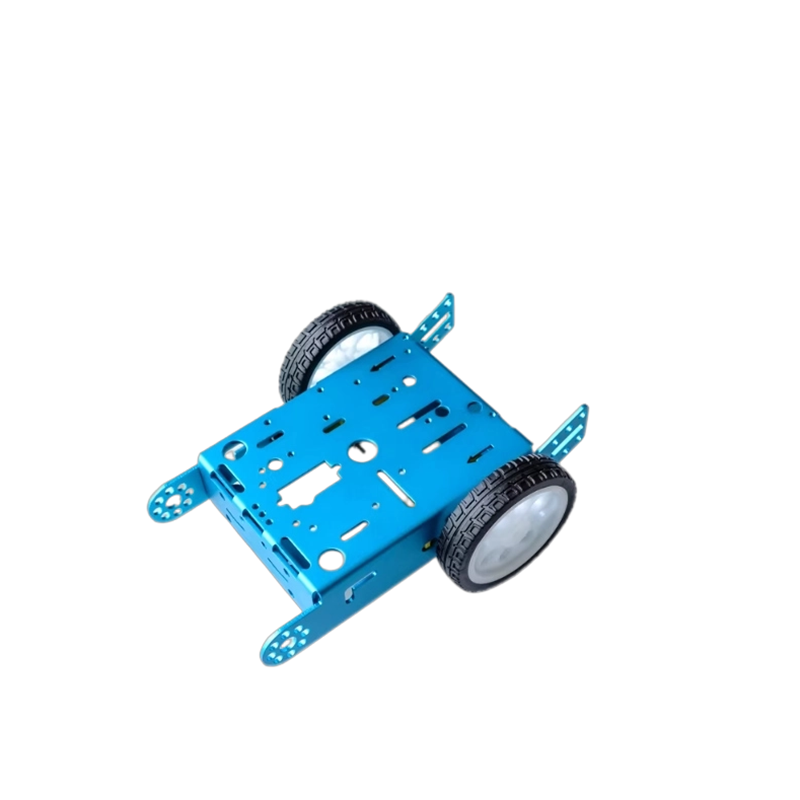

Mini Smart Car Chassis Kit
Description
Mini Omni Directional Three Wheel Robot Chassis .
N3T Series Desktop Mini Two-Wheel Differential Smart Car Chassis. Its compact, palm-sized design is exquisitely crafted, making it ideal for creating desktop robotic car models. The chassis utilizes high-quality frosted acrylic sheets and brand-new N20 DC reduction motors, offering rich expandability.

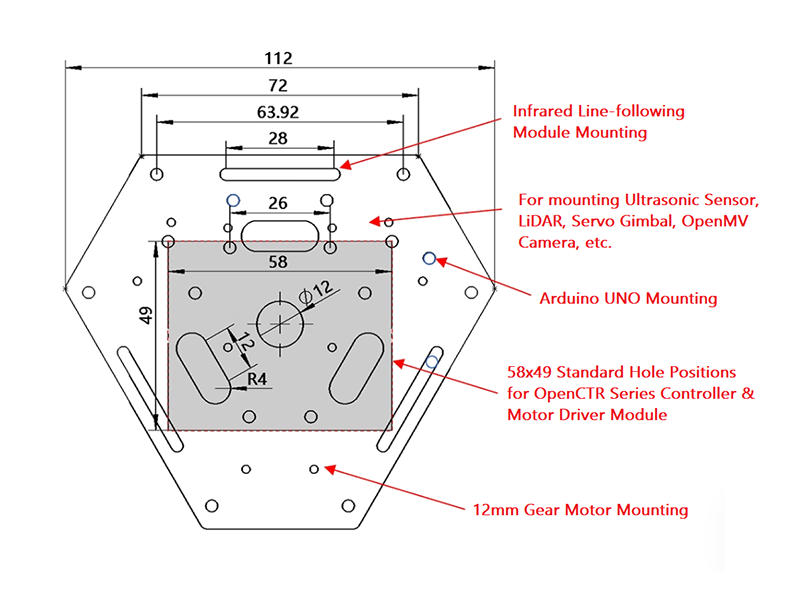

It features multiple reserved mounting holes for main controllers and sensors, supporting mainstream controllers such as STM32, Arduino, and ESP32. The chassis also accommodates 18650 2S 7.4V lithium battery fixation and can be expanded with peripherals like infrared line-following modules, ultrasonic sensors, OpenMV cameras, and servo pan-tilts, making it well-suited for DIY robotic car projects.
Type: N3T-MG12L
SKU: N3T-MG12L
Robot kit size: 160*150*65H mm
Weight: 0.17Kg
Features

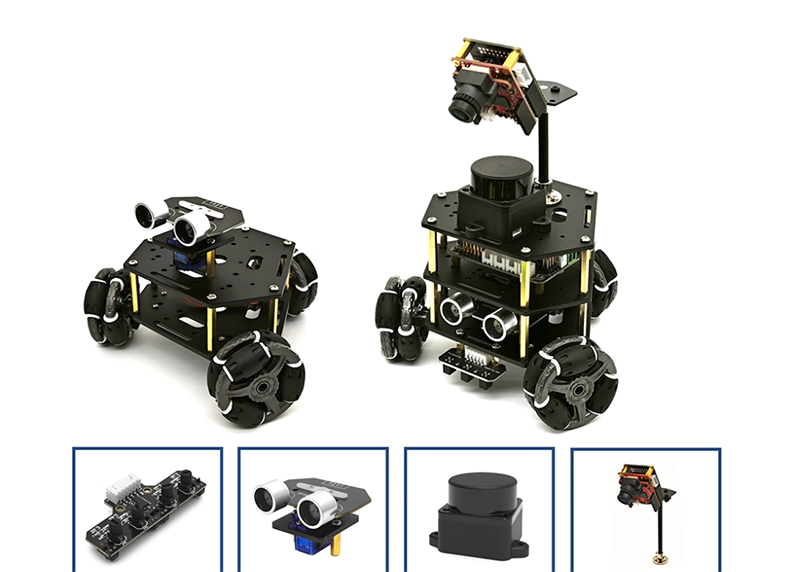

The expansion board for the car is equipped with ample sensor mounting holes, allowing for the integration of commonly used functional peripherals such as an infrared line-following module, ultrasonic pan-tilt unit, CCD line-following module, D6 LiDAR, Robotic arms etc.
Supports expansion with AI machine vision cameras such as OpenMV and K210, and can be used with our height- and angle-adjustable metal-hinge camera mount. It also supports inverted camera installation and is compatible with the official car chassis solution.
Supports installation of common 2-DOF 9g servo pan-tilt mechanisms, with pre-drilled mounting holes. Can be expanded for cameras, OpenMV, and other vision AI camera modules.
Gear Motor size: 12 mm
Motor Data: 6V 150:1 100rpm，
Stall Torque: 1.2Kg.cm
Stall Current: 0.3A
Packing list:
2x Acrylic Chassis
3x 12mm gear motor (no encoder version), with cable X2.54 connector.
3x plastic motor bracket
3x 50mm omni wheel(economic version)
6x M3*30 double through-hole hexagonal brass column
N3T Series Desktop Mini Two-Wheel Differential Smart Car Chassis. Its compact, palm-sized design is exquisitely crafted, making it ideal for creating desktop robotic car models. The chassis utilizes high-quality frosted acrylic sheets and brand-new N20 DC reduction motors, offering rich expandability.
It features multiple reserved mounting holes for main controllers and sensors, supporting mainstream controllers such as STM32, Arduino, and ESP32. The chassis also accommodates 18650 2S 7.4V lithium battery fixation and can be expanded with peripherals like infrared line-following modules, ultrasonic sensors, OpenMV cameras, and servo pan-tilts, making it well-suited for DIY robotic car projects.
Type: N3T-MG12L
SKU: N3T-MG12L
Robot kit size: 160*150*65H mm
Weight: 0.17Kg
Features
The expansion board for the car is equipped with ample sensor mounting holes, allowing for the integration of commonly used functional peripherals such as an infrared line-following module, ultrasonic pan-tilt unit, CCD line-following module, D6 LiDAR, Robotic arms etc.
Supports expansion with AI machine vision cameras such as OpenMV and K210, and can be used with our height- and angle-adjustable metal-hinge camera mount. It also supports inverted camera installation and is compatible with the official car chassis solution.
Supports installation of common 2-DOF 9g servo pan-tilt mechanisms, with pre-drilled mounting holes. Can be expanded for cameras, OpenMV, and other vision AI camera modules.
Gear Motor size: 12 mm
Motor Data: 6V 150:1 100rpm，
Stall Torque: 1.2Kg.cm
Stall Current: 0.3A
Packing list:
2x Acrylic Chassis
3x 12mm gear motor (no encoder version), with cable X2.54 connector.
3x plastic motor bracket
3x 50mm omni wheel(economic version)
6x M3*30 double through-hole hexagonal brass column
Downloads
