Linear Hybird Step motors
Description

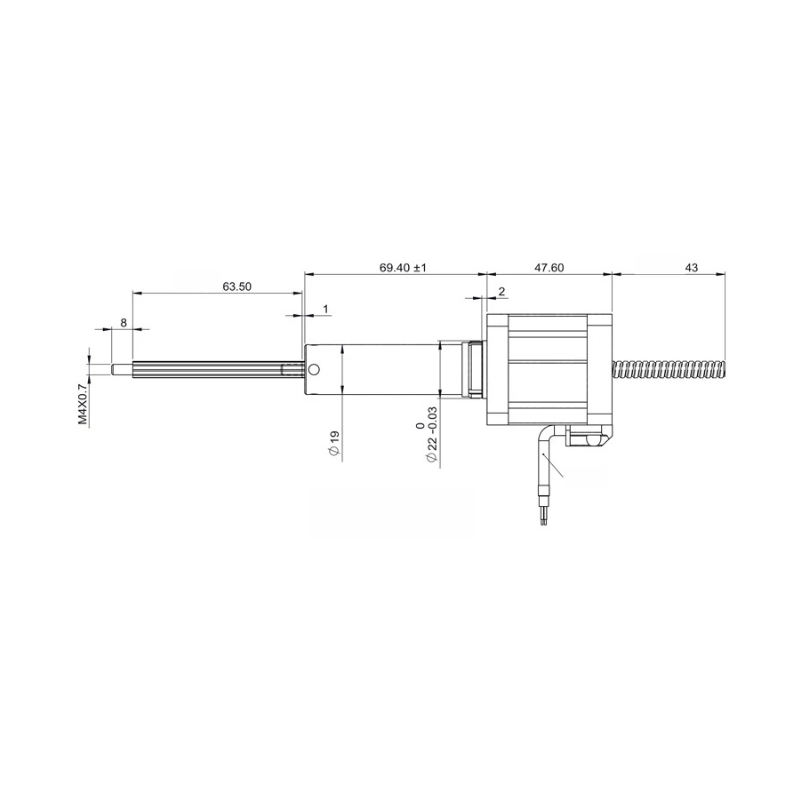

Nema 17 Actutaors 15KG Stroke 63.5mm Lead 6.35
Type:S42P6S63
SKU:S42P6S63
Maximum Thrust Force: 60 N (i.e., 6 kgf)
Step Angle: 1.8°
Rated Current: 0.5 A
Lead: 1.0 mm
Step Size: 0.005 mm
Lead Screw Diameter: 3.5 mm
Effective Stroke: 63.5 mm
Maximum Speed: 600 rpm (revolutions per minute)
Type:S42P6S63
SKU:S42P6S63
Maximum Thrust Force: 60 N (i.e., 6 kgf)
Step Angle: 1.8°
Rated Current: 0.5 A
Lead: 1.0 mm
Step Size: 0.005 mm
Lead Screw Diameter: 3.5 mm
Effective Stroke: 63.5 mm
Maximum Speed: 600 rpm (revolutions per minute)
