Mini 2WD Smart Car R1 with 2 Omni-wheel
Mini 2WD Smart Car R1 with 2 Omni-wheel
Price :
$68.90
- Information related to taxation
- Some question to contact us
- Shipping Information
Mini 2WD Smart Car R1 with 2 Omni-wheel
Description

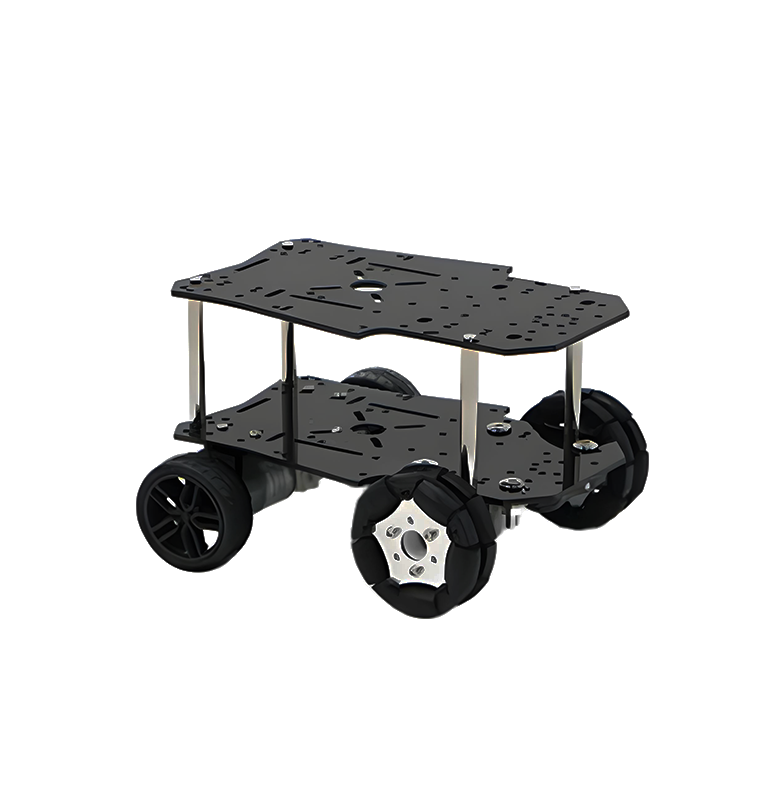

R1 Mini 2WD Smart Car with 2 Omni-wheel
Type: R1-2WDO2
SKU: R1-2WDO2
Robot kit size: Finish 180*147.5*60 mm Weight: 0.53Kg
Rated: 1.5KG
Speed:1.3m/s
Gear Motor size: 25Dx44.5L mm
Motor Data:
Voltage: 7.4 V
Gear Ratio:20.409:1
Stall Torque: 1.5Kg.cm
Stall Current: 2A
No load Speed:500rpm
Rated torque: 0.4Kg.cm
Rated Speed: 400rpm
Rated Current: 0.4A
AB phase Hall Sensor Encoder:13ppr

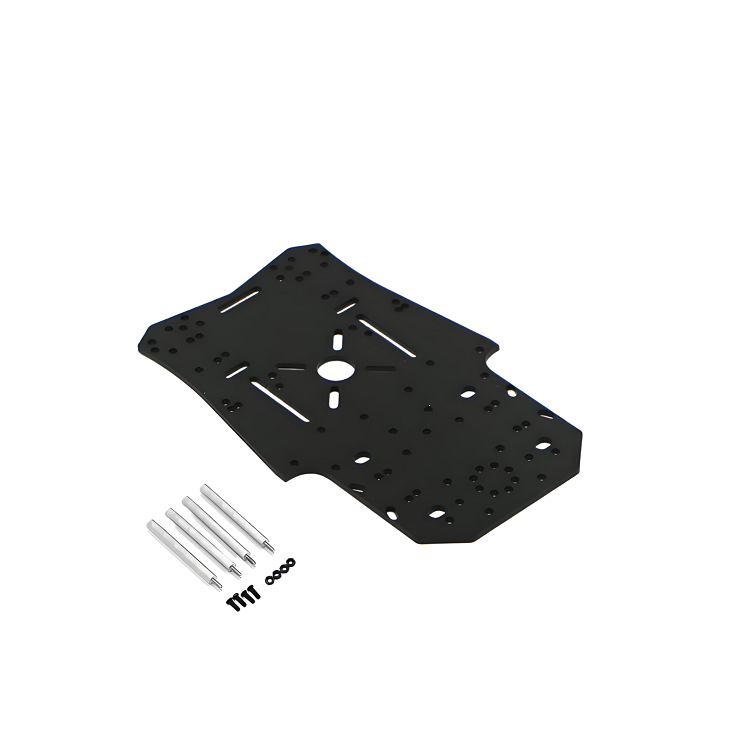

Packing list: 1x Chassis
2x gear motor 25Dx44.5L
2x 48mm rubber tire wheel with hubes and screws
2x 68mm omni-wheel with brackets,bearings and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,​Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
Type: R1-2WDO2
SKU: R1-2WDO2
Robot kit size: Finish 180*147.5*60 mm Weight: 0.53Kg
Rated: 1.5KG
Speed:1.3m/s
Gear Motor size: 25Dx44.5L mm
Motor Data:
Voltage: 7.4 V
Gear Ratio:20.409:1
Stall Torque: 1.5Kg.cm
Stall Current: 2A
No load Speed:500rpm
Rated torque: 0.4Kg.cm
Rated Speed: 400rpm
Rated Current: 0.4A
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x Chassis
2x gear motor 25Dx44.5L
2x 48mm rubber tire wheel with hubes and screws
2x 68mm omni-wheel with brackets,bearings and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,​Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
