Voltage Regulator 5V 5A
$9.43
Mini 4WD Smart Car R1 with 13PPR Encoder Motors
Mini 4WD Smart Car R1 with 13PPR Encoder Motors
Price :
$56.30
- Information related to taxation
- Some question to contact us
- Shipping Information
Mini 4WD Smart Car R1 with 13PPR Encoder Motors
Description
Mini 4WD Smart Car R1 with 13PPR Encoder Motors
Type: R1-4WDC4
SKU: R1-4WDC4

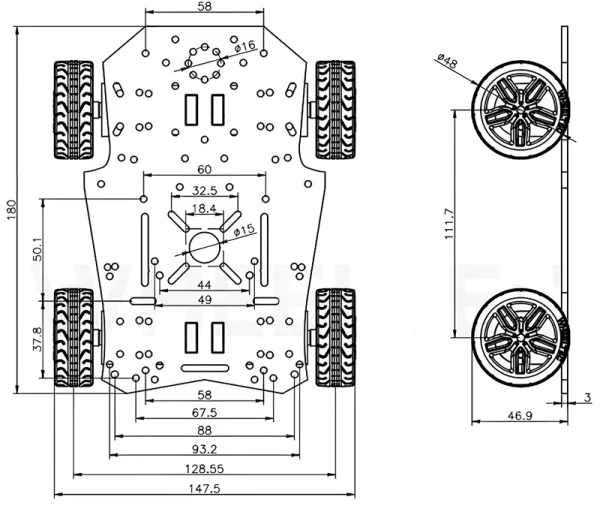

Robot kit size: Finish 180*147.5*48 mm Weight: 0.48Kg
Rated: 1.5KG
Speed:1.3m/s
Gear Motor size: 25Dx44.5L mm
Motor Data:
Voltage: 7.4 V
Gear Ratio:20.409:1
Stall Torque: 1.5Kg.cm
Stall Current: 2A
No load Speed:500rpm
Rated torque: 0.4Kg.cm
Rated Speed: 400rpm
Rated Current: 0.4A
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x Chassis
4x gear motor 25Dx44.5L
4x 48mm rubber tire wheel with hubes and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,​Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
Type: R1-4WDC4
SKU: R1-4WDC4
Robot kit size: Finish 180*147.5*48 mm Weight: 0.48Kg
Rated: 1.5KG
Speed:1.3m/s
Gear Motor size: 25Dx44.5L mm
Motor Data:
Voltage: 7.4 V
Gear Ratio:20.409:1
Stall Torque: 1.5Kg.cm
Stall Current: 2A
No load Speed:500rpm
Rated torque: 0.4Kg.cm
Rated Speed: 400rpm
Rated Current: 0.4A
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x Chassis
4x gear motor 25Dx44.5L
4x 48mm rubber tire wheel with hubes and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,​Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
Downloads
