R550 4WD Suspension Smart Robot
R550 4WD Suspension Smart Robot
Price :
$330.50
- Information related to taxation
- Some question to contact us
- Shipping Information
V550 4WD Suspension Smart Robot, without ROS Module
Description

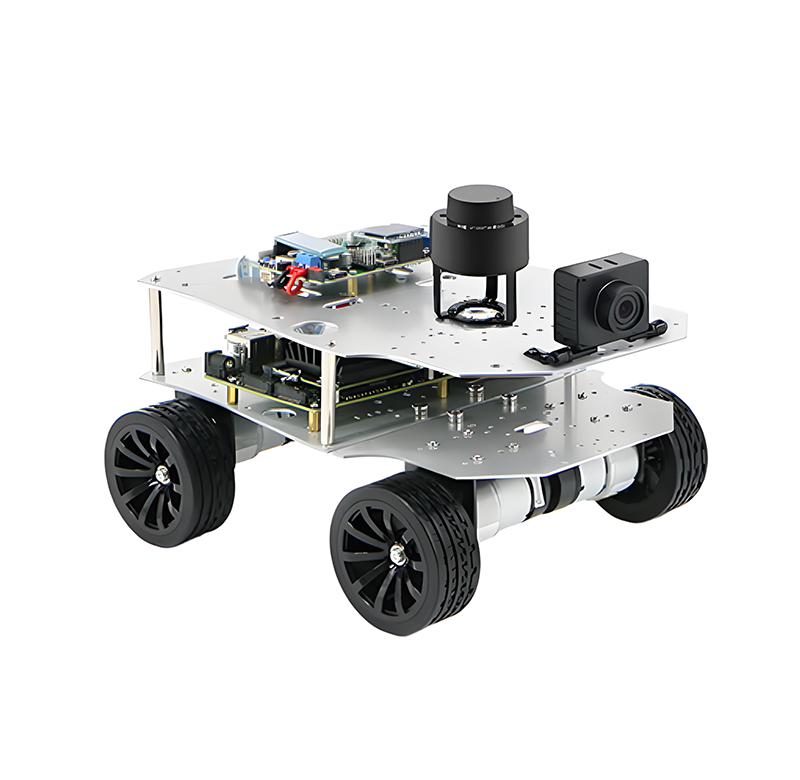

R550 4WD Suspension Smart Robot, without ROS Module
Type: R5504R
SKU: R5504R
Robot size: Finish 266X206X193 mm
Weight: 2.68Kg
Rated: 6KG
Speed: max 1.2m/s
Operating System RS Version: TogetherROS, ROS2 Humble
Operating System STM32 Version: FreeRTOS
Control: STM32F407VET6 MODULE
Battery endurance time: 3.5 H~5.5H (3.5H@rated1KG.CM, 5.5H @no load)
Battery: 12V 5100mAh Lithium Battery
Charger: Protected Lithium-Battery Charger
Encoder: 500ppr
Control Modes:APP, PS2, CAN, Series
Supported Line-Following Methods:N10P/N10P Laser Lidar, Astra camera and RGB camera
Gear Motor size: Gear Motor size: 37Dx53.4L mm
Motor Data: 12V 366rpm 30:1.
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
GMR:500ppr
Packing list: 1x R3 4WD Chassis kit, with suspension
1x N10P Laser Lidar,25 meter version
1x RGB Camera C70FOV
1x STM32F407VET6 Control Board
1x 12v 5100mAh battery (18650# core) with charger
optional:
M10P lidar, 30 meter version,
GB Ros Main Controller RK3366 4GB, Rassberry Pi 5 4GB, RDK X5 8GB, Jeston Nano 4GB, Orin Nano Super 8GB.
Astra pro plus.
Voice Interaction Module
7″ Touchscreen
Type: R5504R
SKU: R5504R
Robot size: Finish 266X206X193 mm
Weight: 2.68Kg
Rated: 6KG
Speed: max 1.2m/s
Operating System RS Version: TogetherROS, ROS2 Humble
Operating System STM32 Version: FreeRTOS
Control: STM32F407VET6 MODULE
Battery endurance time: 3.5 H~5.5H (3.5H@rated1KG.CM, 5.5H @no load)
Battery: 12V 5100mAh Lithium Battery
Charger: Protected Lithium-Battery Charger
Encoder: 500ppr
Control Modes:APP, PS2, CAN, Series
Supported Line-Following Methods:N10P/N10P Laser Lidar, Astra camera and RGB camera
Gear Motor size: Gear Motor size: 37Dx53.4L mm
Motor Data: 12V 366rpm 30:1.
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
GMR:500ppr
Packing list: 1x R3 4WD Chassis kit, with suspension
1x N10P Laser Lidar,25 meter version
1x RGB Camera C70FOV
1x STM32F407VET6 Control Board
1x 12v 5100mAh battery (18650# core) with charger
optional:
M10P lidar, 30 meter version,
GB Ros Main Controller RK3366 4GB, Rassberry Pi 5 4GB, RDK X5 8GB, Jeston Nano 4GB, Orin Nano Super 8GB.
Astra pro plus.
Voice Interaction Module
7″ Touchscreen
