Description
SIRIUS 2306.5 2550KV BLDC for 5 Inch FPV Racing Drone.
Type: 23065-2550KVTI
SKU: 23065-2550KVTI
Features
Aircraft-Grade Aluminum：lightweight integrated rotor design，high strength, excellent heat dissipation.
N52H Neodymium Iron Boron (NdFeB): high-performance dual-arc NdFeB magnets,strong power output, ample low-end torque.
Precision Winding: precision winding, balanced coils, superior heat dissipation.
0.2 mm Silicon Steel Lamination: using 0.2mm low iron-loss silicon steel sheets, improves efficiency by over 5%.
Class 220# Copper Wire: high-temperature Class 220 enameled copper wire, low heat generation, high temperature resistance.
NMB Bearings: low noise, long service life.
Fluororubber Cushioning Design: improves crash survival rate.
Full CNC High-Precision Machining
4mm High-Strength Steel Shaft
Non-Slip Raised Pattern
Color: Titanium color (available black, purple, pink)
Specification
Operating Voltage (S): 4
KV (RPM/V): 2550
Phase Resistance: 41 (mΩ)
No-Load Current: 1.47/10 (A/V)
Max Current (A): 48.9
Max Power (W): 782
Max Thrust (g): 1656
Motor Size (mm): Ø28.7 x 17.5
Bearing Size (mm): Ø9 x Ø4 x 4
Stator Poles / Magnet Poles (N/P):12/14
Weight: 32.8g
Cable: 20AWG x 15 cm

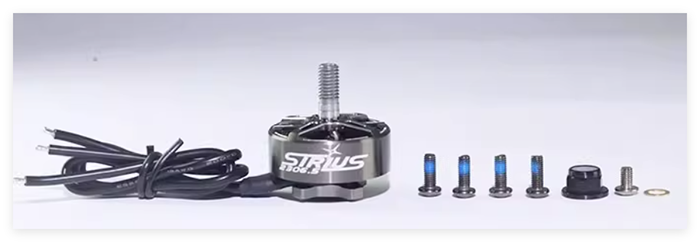

Packing list:
1x SIRIUS 2306.5
1x M5 nut
4x M3*8
1x M3*5
1x spacer
Type: 23065-2550KVTI
SKU: 23065-2550KVTI
