Hollow Shaft Mini Size 14mm Stepper motor
$73.30
Stepper motor 17HS4401 with 20cm Lead Screw 2 phase 200 steps/Rev 2.55V 1.7A 42×40
Stepper motor 17HS4401 with 20cm Lead Screw 2 phase 200 steps/Rev 2.55V 1.7A 42×40
Price :
$32.79
- Information related to taxation
- Some question to contact us
- Shipping Information
Stepper motor
Description
Stepper motor 17HS4401 with 20cm Lead Screw 2 phase 200 steps/Rev 2.55V 1.7A 42×40
Type: SM17HS4401-LS200A
SKU: SM17HS4401-LS200A
Specification
Steps per revolution: 200
Rated current : 1.7 A /phase
Rated voltage: 2.55 V
Resistance: 1.5Ω /phase
Holding torque: 3.7 Kg-cm
Inductance: 2.8 mH /phase
Size: 42.3 x 42.3 x 40 mm

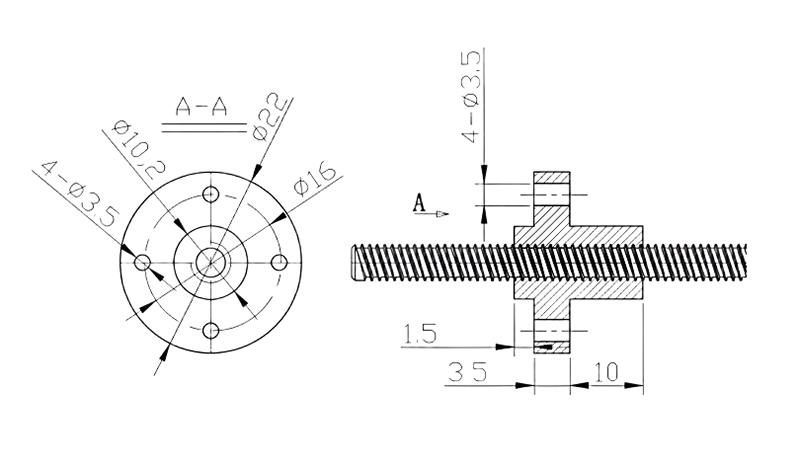

Lead Screw: TR8*8(2 pitch), 200mm length
Lead wire length: 100 cm
Including:
1x 20cm lead screw step motor
1x 100cm Dupont 4 pin cable
Type: SM17HS4401-LS200A
SKU: SM17HS4401-LS200A
Specification
Steps per revolution: 200
Rated current : 1.7 A /phase
Rated voltage: 2.55 V
Resistance: 1.5Ω /phase
Holding torque: 3.7 Kg-cm
Inductance: 2.8 mH /phase
Size: 42.3 x 42.3 x 40 mm
Lead Screw: TR8*8(2 pitch), 200mm length
Lead wire length: 100 cm
Including:
1x 20cm lead screw step motor
1x 100cm Dupont 4 pin cable
Downloads
