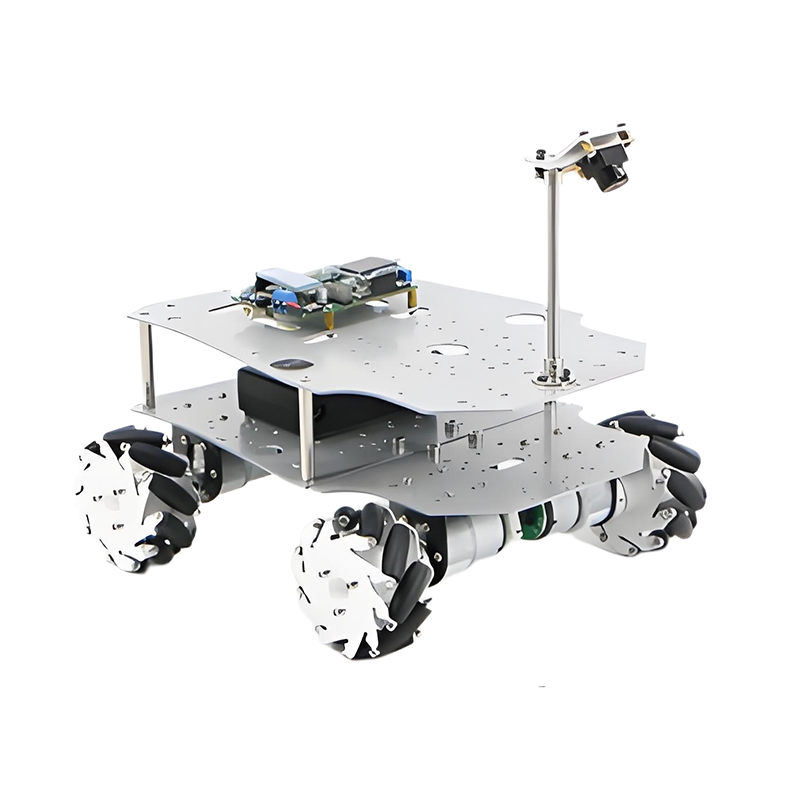

STM32 L150PRO Macanum Wheel Smart Car with Suspension
STM32 L150PRO Macanum Wheel Smart Car with Suspension
Price :
$295.50
- Information related to taxation
- Some question to contact us
- Shipping Information
STM32 L150PRO Macanum Wheel Smart Car with Suspension
Description
STM32 L150PRO Macanum Wheel Smart Car with Suspension and CCD
Type: ROS-150PROMC
SKU: ROS-150PROMC
Robot car size: Finish 266.3X246X121.5 mm (not including CCD height) Weight: 2.9Kg
Rated: 3KG
Speed:1.2m/s
Control: STM32F407VET6
Battery endurance time​: 1.2 H
Battery: 12V 18650 Lithium Battery (2600mAh)
Charger: Protected Lithium-Battery Charger
Encoder: Outputs 390 pulses per wheel revolution (tire can distinguish 0.23° rotation)
Control Method: PID Speed Closed-Loop Control (with source code, development notes, video tutorials)
Supported Control Modes:APP (joystick control, gravity-sensing control, button control), PS2 controller
Supported Line-Following Methods:Linear CCD, Electromagnetic (compatible with NXP intelligent vehicle signal generator)
Gear Motor size: Gear Motor size: 37Dx53.4L mm
Motor Data: 12V 366rpm 30:1.
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x R3 Macanum wheel Chassis kit
1x STM32F407VET6 Control Board
1xOLED (small)
1x battery with charger
1x USB deta cable
1x Bluetooth module
1x CCD
optional:
N10P lidar, Electromagnetic Line Following, PS2 controller
Type: ROS-150PROMC
SKU: ROS-150PROMC
Robot car size: Finish 266.3X246X121.5 mm (not including CCD height) Weight: 2.9Kg
Rated: 3KG
Speed:1.2m/s
Control: STM32F407VET6
Battery endurance time​: 1.2 H
Battery: 12V 18650 Lithium Battery (2600mAh)
Charger: Protected Lithium-Battery Charger
Encoder: Outputs 390 pulses per wheel revolution (tire can distinguish 0.23° rotation)
Control Method: PID Speed Closed-Loop Control (with source code, development notes, video tutorials)
Supported Control Modes:APP (joystick control, gravity-sensing control, button control), PS2 controller
Supported Line-Following Methods:Linear CCD, Electromagnetic (compatible with NXP intelligent vehicle signal generator)
Gear Motor size: Gear Motor size: 37Dx53.4L mm
Motor Data: 12V 366rpm 30:1.
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x R3 Macanum wheel Chassis kit
1x STM32F407VET6 Control Board
1xOLED (small)
1x battery with charger
1x USB deta cable
1x Bluetooth module
1x CCD
optional:
N10P lidar, Electromagnetic Line Following, PS2 controller
