System Board C07A Chip TI MSPM0G3507
System Board C07A Chip TI MSPM0G3507
Price :
$5.43
- Information related to taxation
- Some question to contact us
- Shipping Information
System board
Description

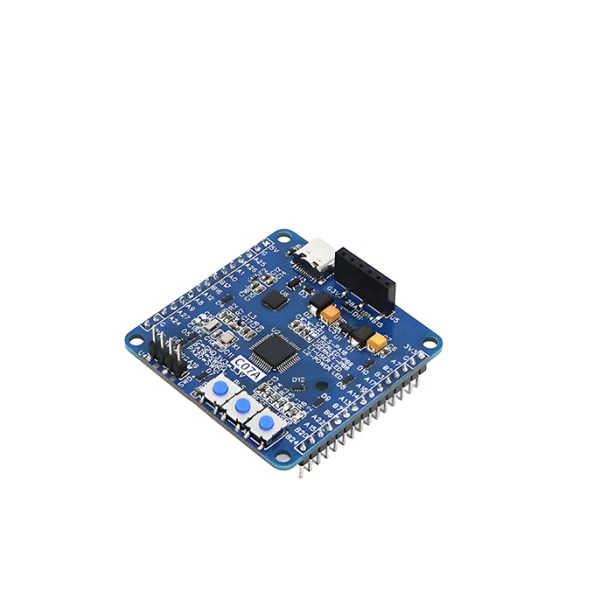

System Board C07A Chip TI MSPM0G3507
Type: CO7A
SKU:MOD-CO7A
Main Control Chip: MSPM0G3507
Input Power Voltage: 5V
Download Interface: Supports serial port download, SWD interface reserved
Board Dimensions: 50 * 50mm
Weight: 13g
Mounting Hole Diameter and Pitch: 44 * 44mm
Dual Row Pin Spacing: 47.3mm
Protection Circuit: Board-mounted self-recovery fuse
Protection Functions: ESD electrostatic protection, TVS surge protection, 3.3V short-circuit protection, fuse overcurrent protection
Human-Machine Interaction Related: LED lights, user buttons, OLED display
Packing list: 1x TI MSPM0G3507
2x non soldered head pins 1*15
1x Type C cable
Type: CO7A
SKU:MOD-CO7A
Main Control Chip: MSPM0G3507
Input Power Voltage: 5V
Download Interface: Supports serial port download, SWD interface reserved
Board Dimensions: 50 * 50mm
Weight: 13g
Mounting Hole Diameter and Pitch: 44 * 44mm
Dual Row Pin Spacing: 47.3mm
Protection Circuit: Board-mounted self-recovery fuse
Protection Functions: ESD electrostatic protection, TVS surge protection, 3.3V short-circuit protection, fuse overcurrent protection
Human-Machine Interaction Related: LED lights, user buttons, OLED display
Packing list: 1x TI MSPM0G3507
2x non soldered head pins 1*15
1x Type C cable
Downloads
