5″ FPV Long-Range Carbon Fiber Frame
Type: DRM5CRED
SKU: DRM5CRED
Mark4 5 Inch “Floral Style” Frame: Lighter, Superior Performance, Easier Installation. Enables smooth flight and more relaxed, elegant FPV filming.
The H-type structure does not compromise the flight experience. On the contrary, compared to an X-type frame, the arms are shorter and the weight is lighter, while the arm strength is higher.
The H-type layout provides more installation space in the central fuselage section and a lower center of gravity, resulting in more stable flight.
The FPV camera mounting width is 19mm, suitable for micro cameras such as Micro Eagle, Micro Sparrow, etc. The fuselage also features pre-drilled holes for two flight controller mounting standards: 30.5 * 30.5mm and 20 * 20mm, accommodating various flight controllers.
The arms are meticulously crafted with a rational structure.

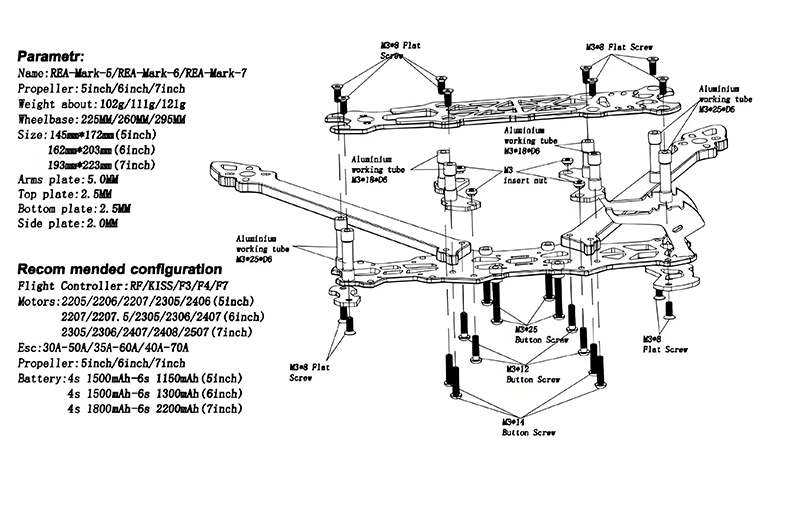

Product Specifications:
Max Propeller Support: 5 inch
Wheelbase: 225mm
Weight: 102g
Dimensions: 145 * 172mm
Bottom Plate Thickness: 2.5mm
Top Plate Thickness: 2.5mm
Side Plate Thickness: 2.5mm
Middle Bracket Thickness: 2mm
Front/Rear Protective Frame Thickness: 2.5mm
Arm Thickness: 5mm
Recommended Configuration:
Flight Controller: F3/F4/F7/H743/F405/F722
Motors: 2205/2206/2207/2305/2306/2507/2306.5/2207.5
ESCs: 30A-60A
Battery: 4S 1500mAh-2200mAh ~ 6S 1400mAh-2200mAh
Packing list:
1x suit of carbon fiber FPV
1x red color 3D printing parts
1x Screws
