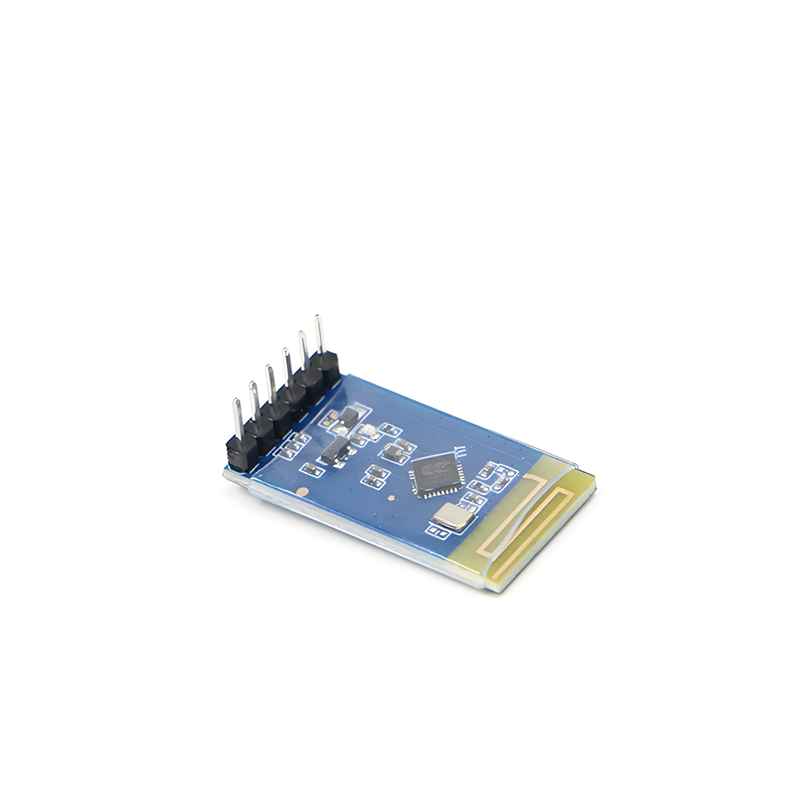

Bluetooth Slave Module
Bluetooth Slave Module
Price :
$4.80
- Information related to taxation
- Some question to contact us
- Shipping Information
System board
Description
Bluetooth Slave Module
Type: JDY-33
SKU:MOD-JDY-33
(Provide MSPM0G3507 example source code)
Specification:
Operating Frequency Band: 2.4GHz
Communication Interface: UART
TTL Level: 3.3V/5V
Operating Voltage: 3.6V – 5V
Operating Temperature: -40°C ~ 80°C
Antenna: Built – in PCB Antenna
Transmission Distance: 30m
Master – Slave Support: Slave
Module Size: 26.7x13x1.7mm
Bluetooth Version: Bluetooth 3.0 SPP + BLE4.2
Maximum Transmit Power: 6db
Receiving Sensitivity: -96dbm
Maximum Throughput of SPP: 16K bytes/s (for Android, Windows). When sending data in connection with Android or computer Bluetooth, the communication speed can reach 16k bytes per second without packet loss, and the SPP sending rate is 8K bytes per second.
BLE: When the BLE is connected to iOS or Android, the communication speed is 4K bytes per second (it supports continuous data transmission and reception at a baud rate of 38400. If the baud rate is higher than 38400, continuous transmission is not possible, and a delay needs to be added in the middle).
Packing list:
1x Bluetooth Slave Module
Type: JDY-33
SKU:MOD-JDY-33
(Provide MSPM0G3507 example source code)
Specification:
Operating Frequency Band: 2.4GHz
Communication Interface: UART
TTL Level: 3.3V/5V
Operating Voltage: 3.6V – 5V
Operating Temperature: -40°C ~ 80°C
Antenna: Built – in PCB Antenna
Transmission Distance: 30m
Master – Slave Support: Slave
Module Size: 26.7x13x1.7mm
Bluetooth Version: Bluetooth 3.0 SPP + BLE4.2
Maximum Transmit Power: 6db
Receiving Sensitivity: -96dbm
Maximum Throughput of SPP: 16K bytes/s (for Android, Windows). When sending data in connection with Android or computer Bluetooth, the communication speed can reach 16k bytes per second without packet loss, and the SPP sending rate is 8K bytes per second.
BLE: When the BLE is connected to iOS or Android, the communication speed is 4K bytes per second (it supports continuous data transmission and reception at a baud rate of 38400. If the baud rate is higher than 38400, continuous transmission is not possible, and a delay needs to be added in the middle).
Packing list:
1x Bluetooth Slave Module
