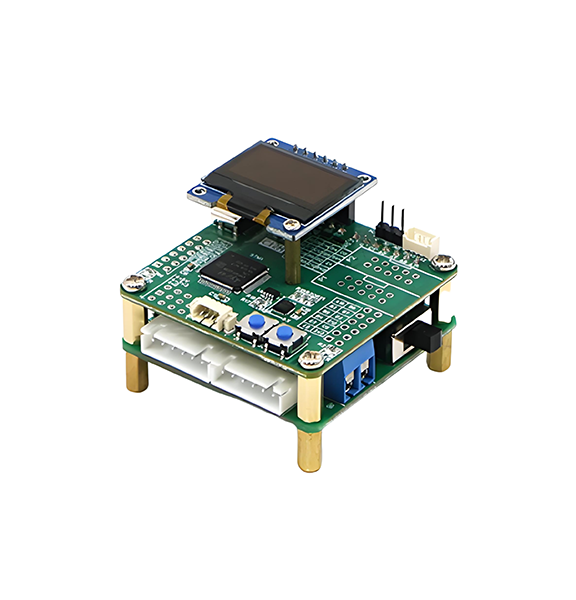

Dual Channel Motor Drive Module Integrated Voltage Regulator.
The TB6612 enables bidirectional rotation and infinitely variable speed control with a much narrower PWM deadband than the L298N module, also with Short Circuit Protection and Over Temperature Protection.
Type: D153C
SKU:MOD-D153C
Module size: 50×50 mm
Voltage: 4.5-15V
Single channel current: 1.2A (peak: 3.2A)
Logic Control Pin Voltage:3.3-5v
Reference voltage pin voltage range: stabilized output of 5V
(No logic power supply required. The reference voltage uses the built – in voltage )
Protection functions:Short – circuit protection, over – temperature protection
Other functions:Power supply voltage sampling, encoder interface
Control signal pins:To control the forward and reverse rotation of a motor, 1 PWM signal and 2 ordinary IOs are required
PWM Range: 0-100Khz (suggest:10Khz)
Appliction: TT motor, 25mm MG25 gear motor,37mm MG37 gear motor
Feature:
*Equipped with a built-in voltage stabilization circuit, eliminating the need for logic power supply.
*Built-in power interface voltage detection circuit, allowing power supply voltage to be collected through the microcontroller’s ADC.
*Provides multiple 5V, 5A protected power output interfaces.
*Provides multiple 3.3V, 0.5A protected power output interfaces.
*Compatible with the common encoder motor XH2.54 6P interface.
Packing list:
1x TB6612 dual channel driver
2x non soldered head pins
4x M3*10 Double Through-Hole Hexagonal Brass Column
8x M3*6
