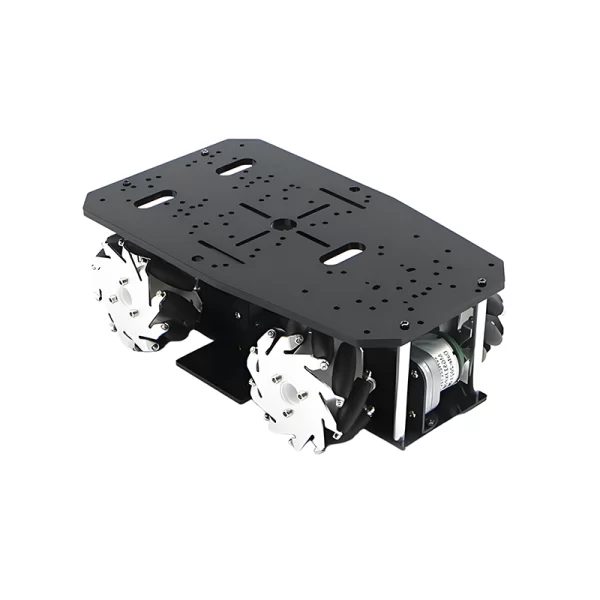

Smart Car R3X Chassis Kit with 4 Macanum Wheel
Description
Smart Car R3X Chassis Kit with 4 Macanum Wheel
Type: R3X-4WDM75
SKU: R3X-4WDM75

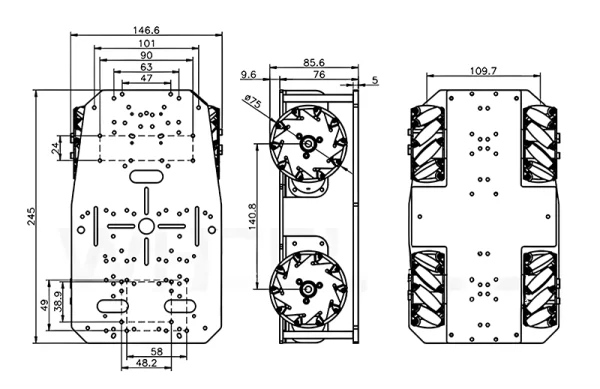

Robot kit size: Finish 245*146.6*85.6 mm Weight: 1.65 Rated: 6KG
Speed:1.45m/s
Gear Motor size: 36x64x43 mm
Motor Data: 12V 370rpm 28:1
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x Chassis suit
4x gear motor
4x 75mm metal mecanum wheel,tightening couplings and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
Type: R3X-4WDM75
SKU: R3X-4WDM75
Robot kit size: Finish 245*146.6*85.6 mm Weight: 1.65 Rated: 6KG
Speed:1.45m/s
Gear Motor size: 36x64x43 mm
Motor Data: 12V 370rpm 28:1
Stall Torque: 4.5Kg.cm 3.2A
Rated: 1.5Kg.cm,0.36A
Rated Speed: 300rpm
AB phase Hall Sensor Encoder:13ppr
Packing list: 1x Chassis suit
4x gear motor
4x 75mm metal mecanum wheel,tightening couplings and screws
4xlead wires and connetors
optional:
12V 2550mAH Li battery, TB6612 Module, Motor driver module,Linear CCD Vision Recognition Module with Hinged Height- and Angle-Adjustable Support Bracket.
