Stepper motor
Description
Stepper motor 2 phase 400 steps/Rev 5V 1A 42×48
Type: ST42BYH1004-5013
SKU: ST42BYH1004-5013
Specification
Steps per revolution: 400
Rated current : 1.0 A /phase
Rated voltage: 5V
Resistance: 5Ω /phase
Holding torque: 4.4 Kg.cm
Inductance: 11.5 mH /phase

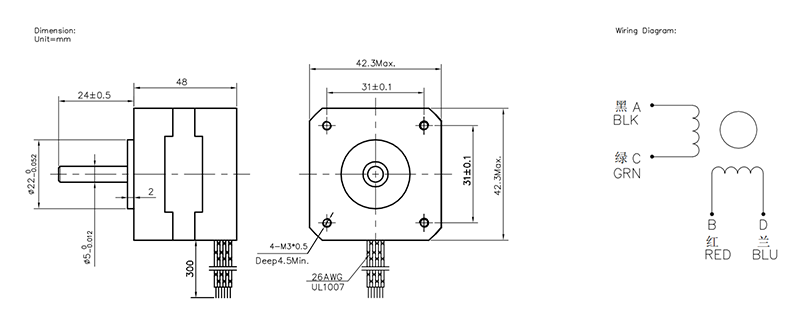

Size: 42.3 x 42.3 x 48(L) mm
Weight: 340 g
Shaft diameter: 5 mm
Extending Shaft length: 24 mm
Lead wire length: 30 cm
Including: 1x step motor
Type: ST42BYH1004-5013
SKU: ST42BYH1004-5013
Specification
Steps per revolution: 400
Rated current : 1.0 A /phase
Rated voltage: 5V
Resistance: 5Ω /phase
Holding torque: 4.4 Kg.cm
Inductance: 11.5 mH /phase
Size: 42.3 x 42.3 x 48(L) mm
Weight: 340 g
Shaft diameter: 5 mm
Extending Shaft length: 24 mm
Lead wire length: 30 cm
Including: 1x step motor
Downloads
