Differential Smart Car Chassis R3
Differential Smart Car Chassis R3
Price :
$90.67
- Information related to taxation
- Some question to contact us
- Shipping Information
Arkerman Smart Car Chassis R3
Description

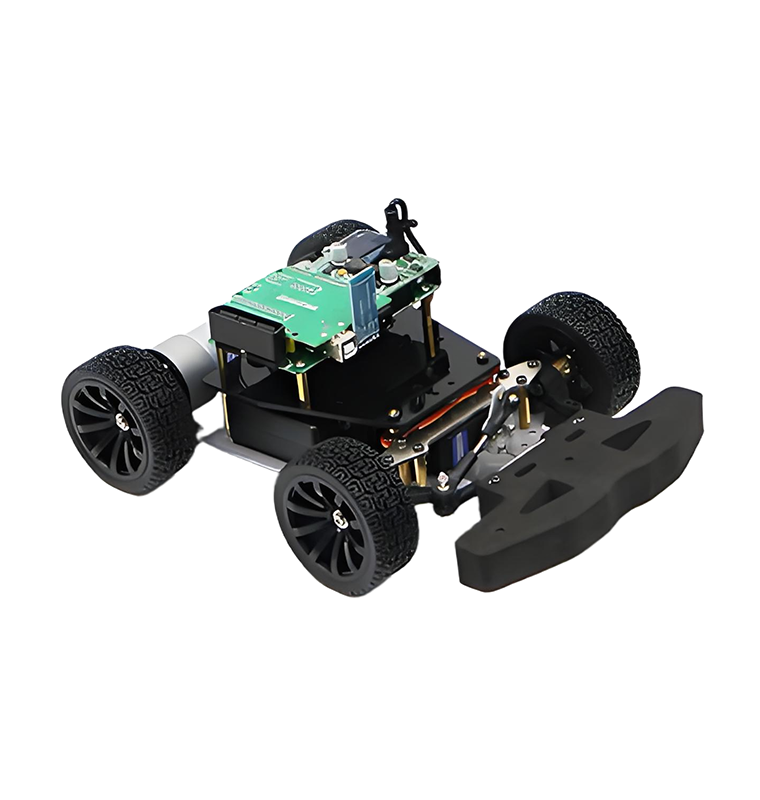

Differential Smart Car Chassis R3
Type: R3-DIF01
SKU: R3-DIF01

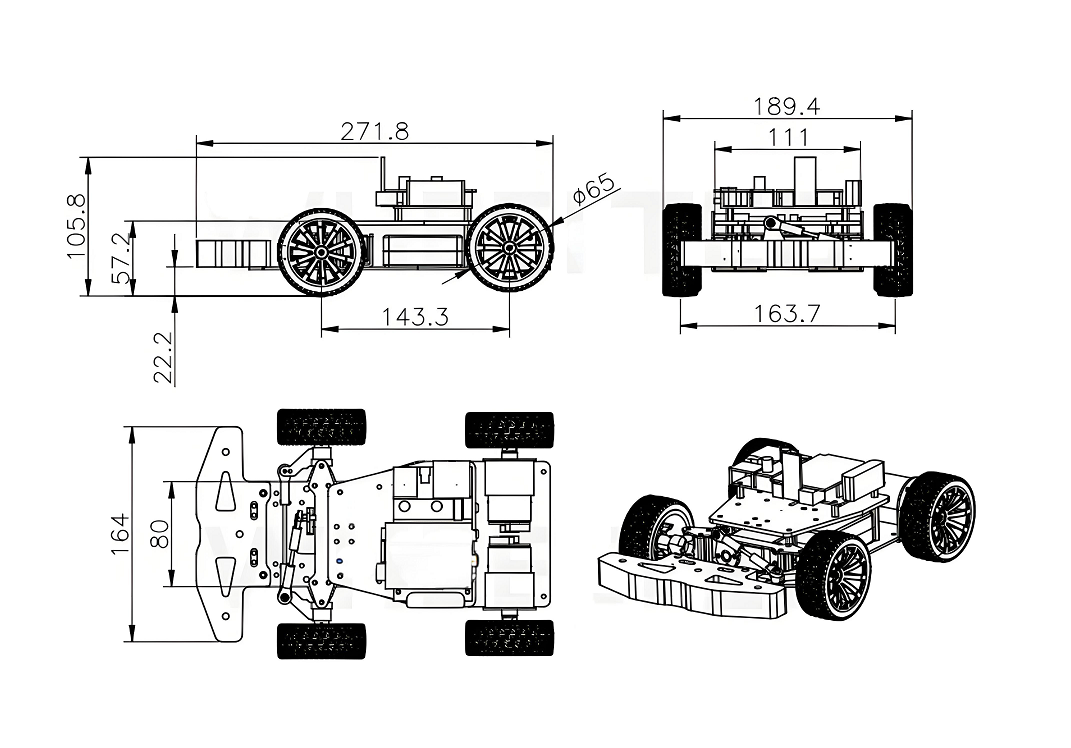

Robot kit size: Finish 270.6*191*71 mm Weight: 0.92Kg
Rated: 3KG
Speed:1.2m/s
Gear Motor size: 37Dx53.4L mm
Motor Data:
Voltage: 12 V
Gear Ratio:30:1
Stall Torque: 4.5Kg.cm
Stall Current: 3.2A
No load Speed:366rpm
Rated torque:1Kg.cm
Rated Speed: 293rpm
Rated Current: 0.36A
AB phase Hall Sensor Encoder:13ppr
Packing list: 2x metal Chassis (upper layer, bottom layer)
2x encoder gear motor 37Dx53.4L
2x 65mm rubber tire wheel with hubes and screws
1x 60mm omni wheel with bearing and block
4xlead wires and connetors
optional:
Type: R3-DIF01
SKU: R3-DIF01
Robot kit size: Finish 270.6*191*71 mm Weight: 0.92Kg
Rated: 3KG
Speed:1.2m/s
Gear Motor size: 37Dx53.4L mm
Motor Data:
Voltage: 12 V
Gear Ratio:30:1
Stall Torque: 4.5Kg.cm
Stall Current: 3.2A
No load Speed:366rpm
Rated torque:1Kg.cm
Rated Speed: 293rpm
Rated Current: 0.36A
AB phase Hall Sensor Encoder:13ppr
Packing list: 2x metal Chassis (upper layer, bottom layer)
2x encoder gear motor 37Dx53.4L
2x 65mm rubber tire wheel with hubes and screws
1x 60mm omni wheel with bearing and block
4xlead wires and connetors
optional:
Downloads
